Product introduction:

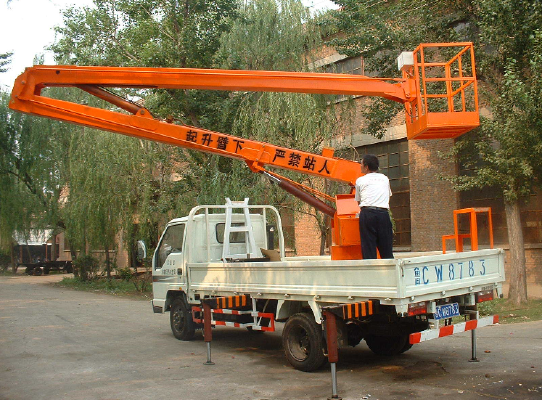

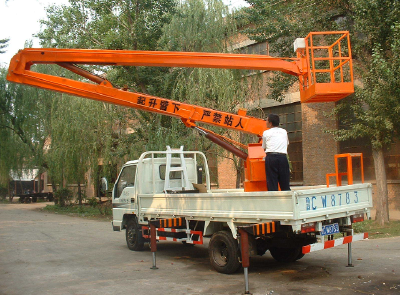

Vehicle mounted lift is a high altitude working equipment which is installed in the car. By special chassis, working arm rack, three-dimensional full swing mechanism, flexible clamping device, hydraulic system, electrical system and safety device, etc.

Technical characteristics:

(1) a new type of fully hydraulic self - propelled special chassis. Self-propelled aerial lifting platform car developed with completely independent intellectual property rights, the hydromechatronics, reliability design and computer aided design technology, successfully developed a fully hydraulic drive, self-propelled chassis, breaking the previous domestic aerial lift platform truck crane chassis can only use the car or refitting design limit.

(2) with load driving, operating stability is good. The chassis structure breaks through the traditional design theory and method, through optimizing the overall layout and load distribution of the platform, reducing the center of gravity shift. Backstroke hinge structure with large angle unique, a reasonable set of these modules, effectively balance the moment. Using H type of variable cross-section composite box beam of the frame and cut high load solid rubber tires, increase the chassis overall stiffness, ensure the stability of the travel and work process, realize the aerial lift platform car traveling with load function.

(3) multi function and multi purpose operating device. The front end of the arm bracket, can quickly install lifting device or platform, material lifting, hoisting and manned high-altitude operations and other functions, and provides the interface for fast switching operation expansion device and all kinds of working device.

(4) the unique three-dimensional rotating lifting device. Three-dimensional rotating lifting device design, which can automatically keep lifting material posture, and can realize the lifting material within the space of arbitrary height, arbitrary position and arbitrary direction adjustment requirements, speed control is accurate and sensitive, fretting performance, meet the installation operation and ventilation pipeline empty large storeroom required.
